Wildware

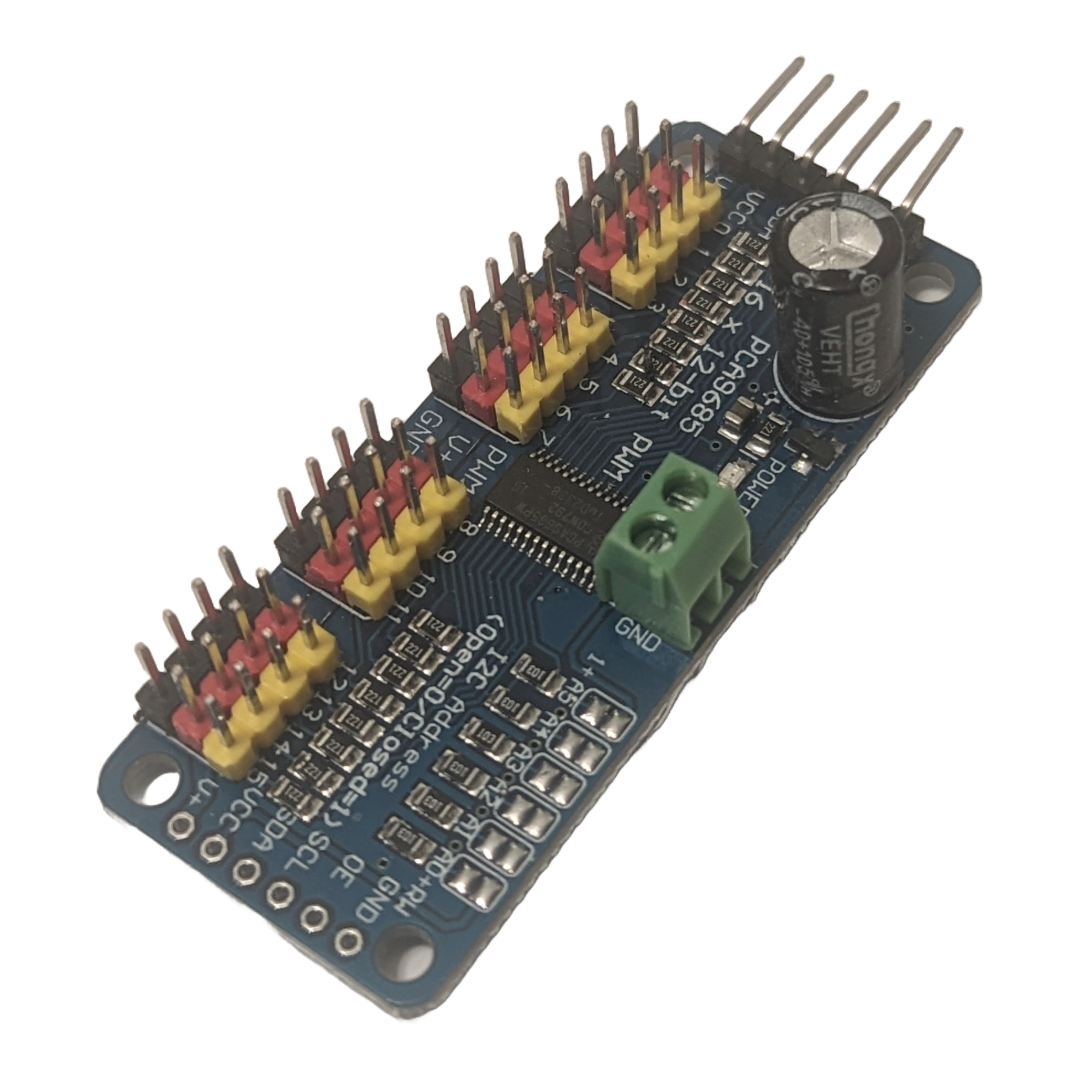

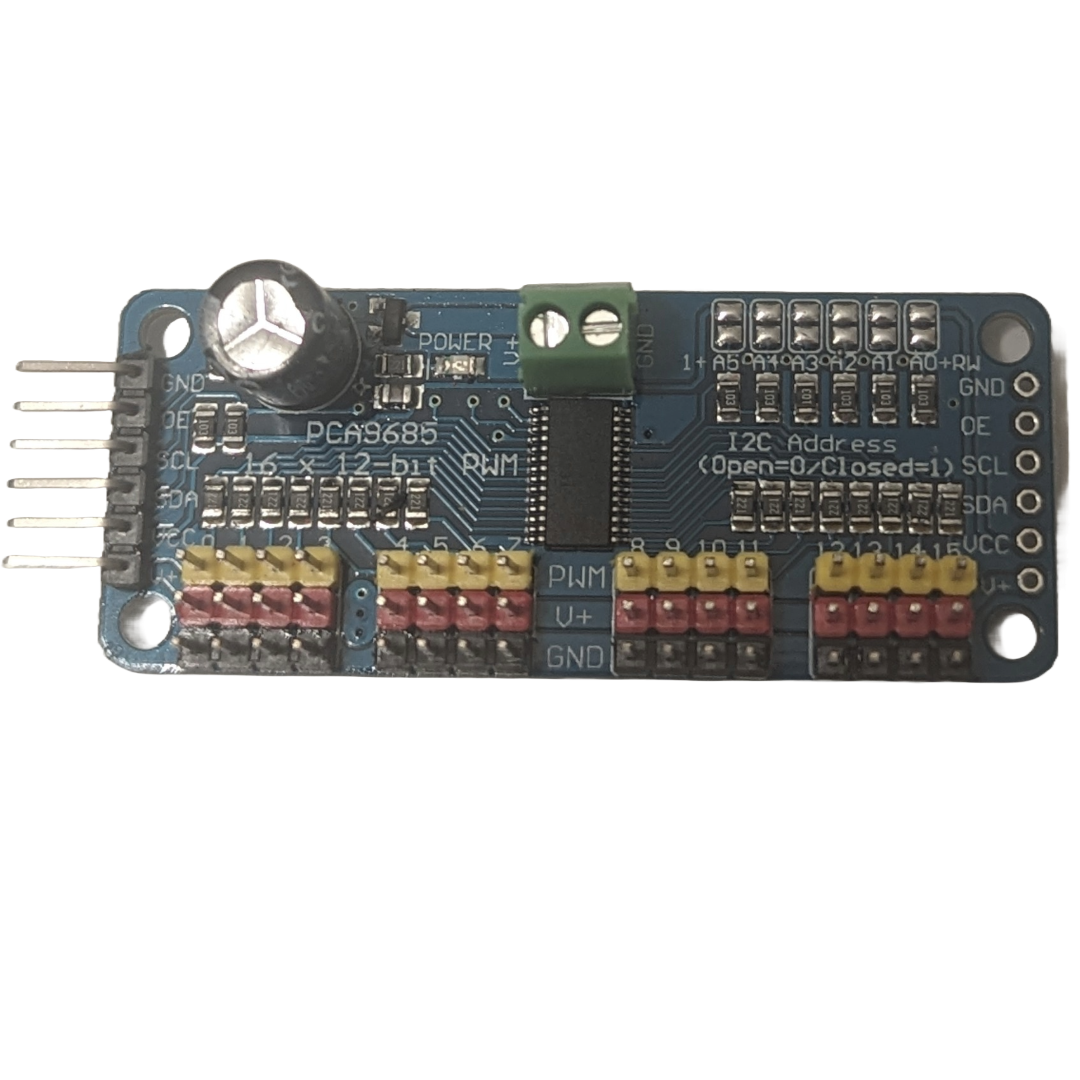

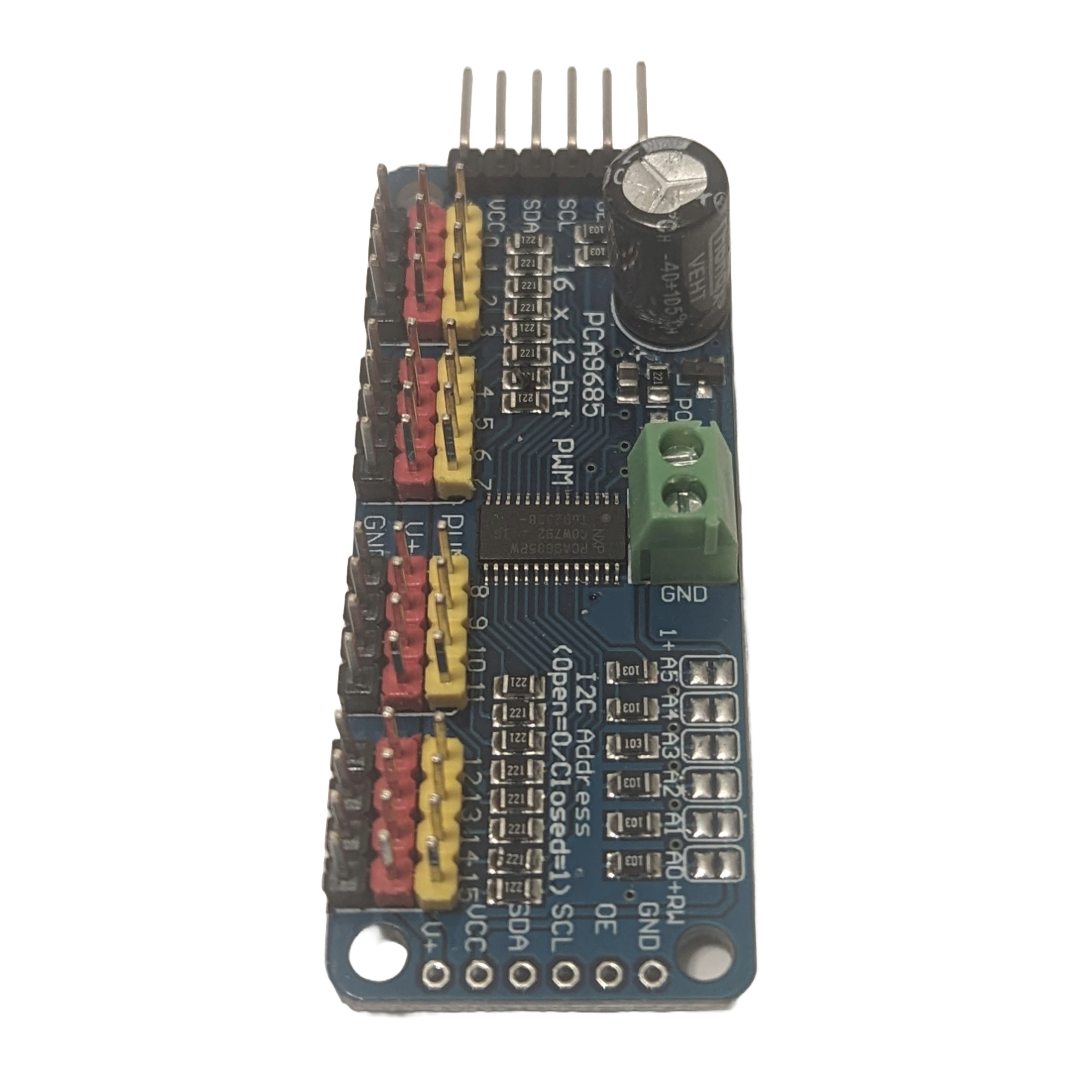

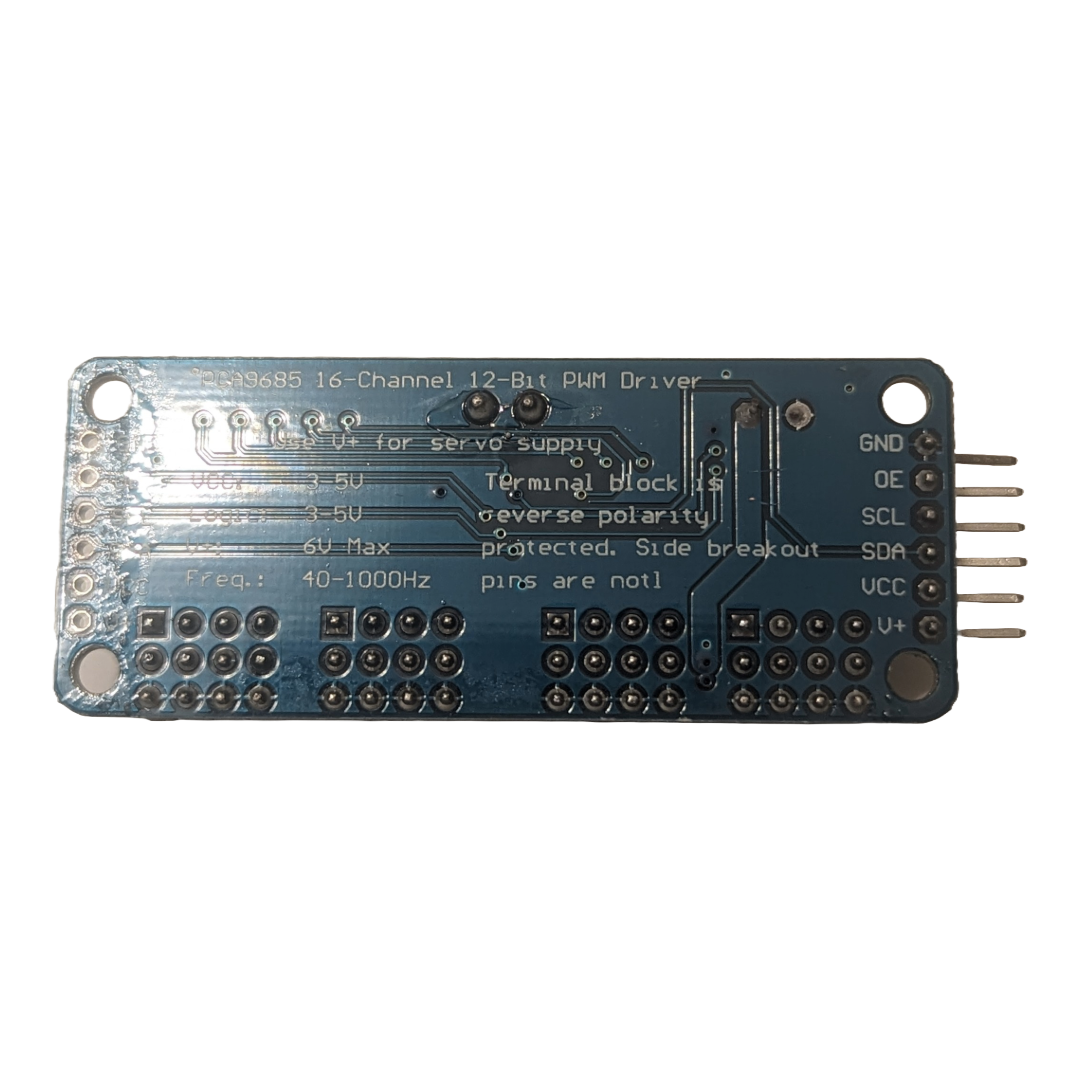

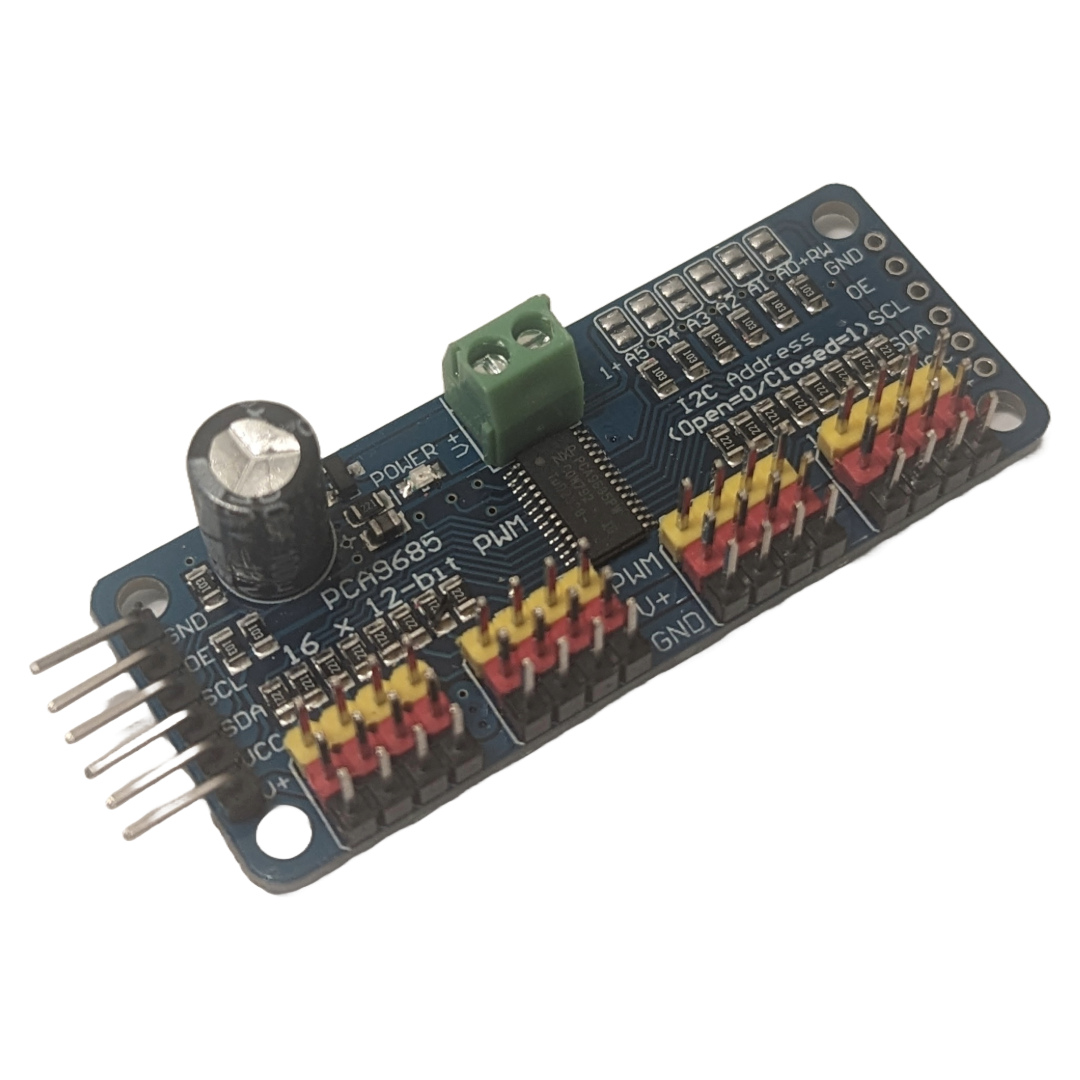

PCA9685 16-Channel Driver
PCA9685 16-Channel Driver
Regular price
$5.95 USD
Regular price
Sale price
$5.95 USD
Unit price
/
per
Couldn't load pickup availability
Unlock the full potential of your robotics and automation projects with the PCA9685 16-Channel 12-bit PWM Servo Motor Driver. This versatile and high-precision servo controller is designed to handle up to 16 servos or PWM outputs, making it an essential component for projects requiring multiple motor control. Perfectly compatible with Arduino and other microcontrollers, the PCA9685 is your go-to solution for efficient and reliable servo management.
Key Features:
- 16-Channel PWM Control: Easily control up to 16 servo motors with precise 12-bit resolution, allowing for smooth and accurate movements.
- I2C Interface: Utilizes a simple I2C interface, requiring only two pins to control all outputs, freeing up valuable GPIO pins for other uses.
- Expandable: Chain up to 62 PCA9685 modules together to control up to 992 servos using a single I2C bus.
- Built-in Clock: Features an internal clock, eliminating the need for continuous signals from your microcontroller.
- Adjustable Frequency: PWM frequency can be adjusted up to approximately 1.6 kHz, making it versatile for different types of servos and motors.
- Easy Integration: Compatible with popular development platforms like Arduino, Raspberry Pi, and others, with extensive libraries and support available.
Specifications:
- PWM Resolution: 12-bit (4096 steps)
- Number of Channels: 16
- Communication Interface: I2C
- Operating Voltage: 2.3V - 5.5V
- Frequency Range: Adjustable from 24 Hz to 1.6 kHz
- Dimensions: 60mm x 25mm x 3mm
Applications:
- Robotics Projects
- Automated Machinery
- Home Automation Systems
- RC Models and Drones
- Light Control Systems
- DIY Electronics Projects
