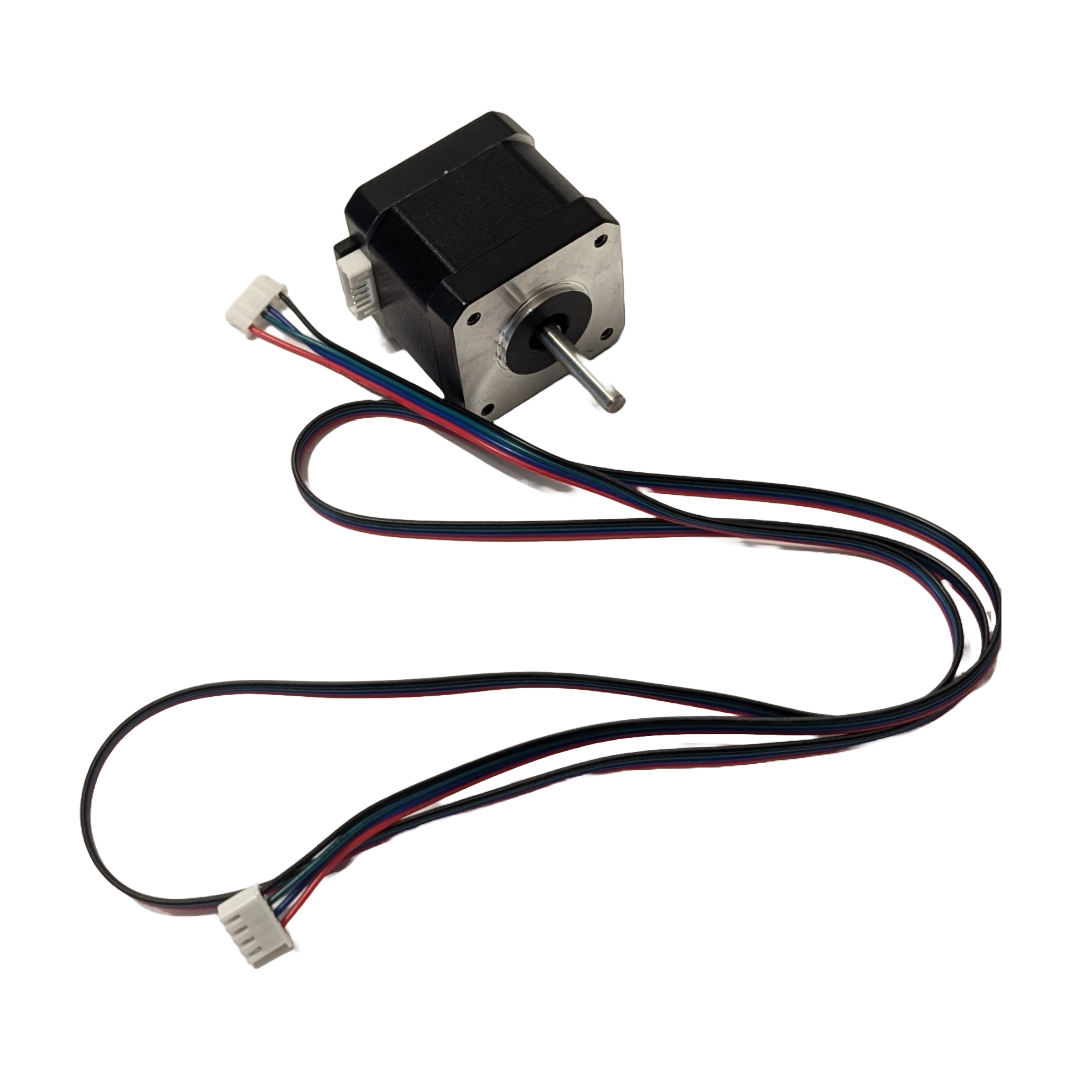

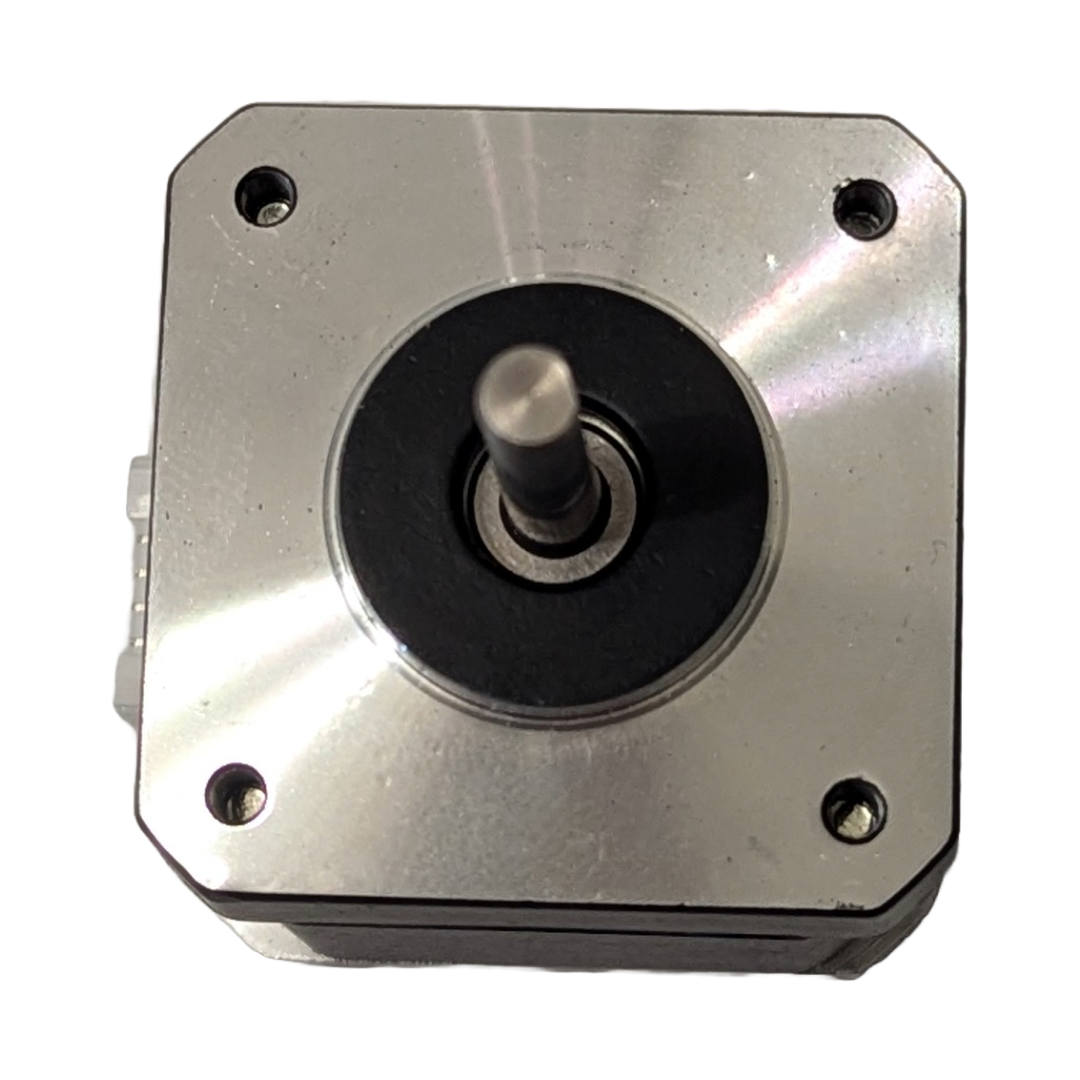

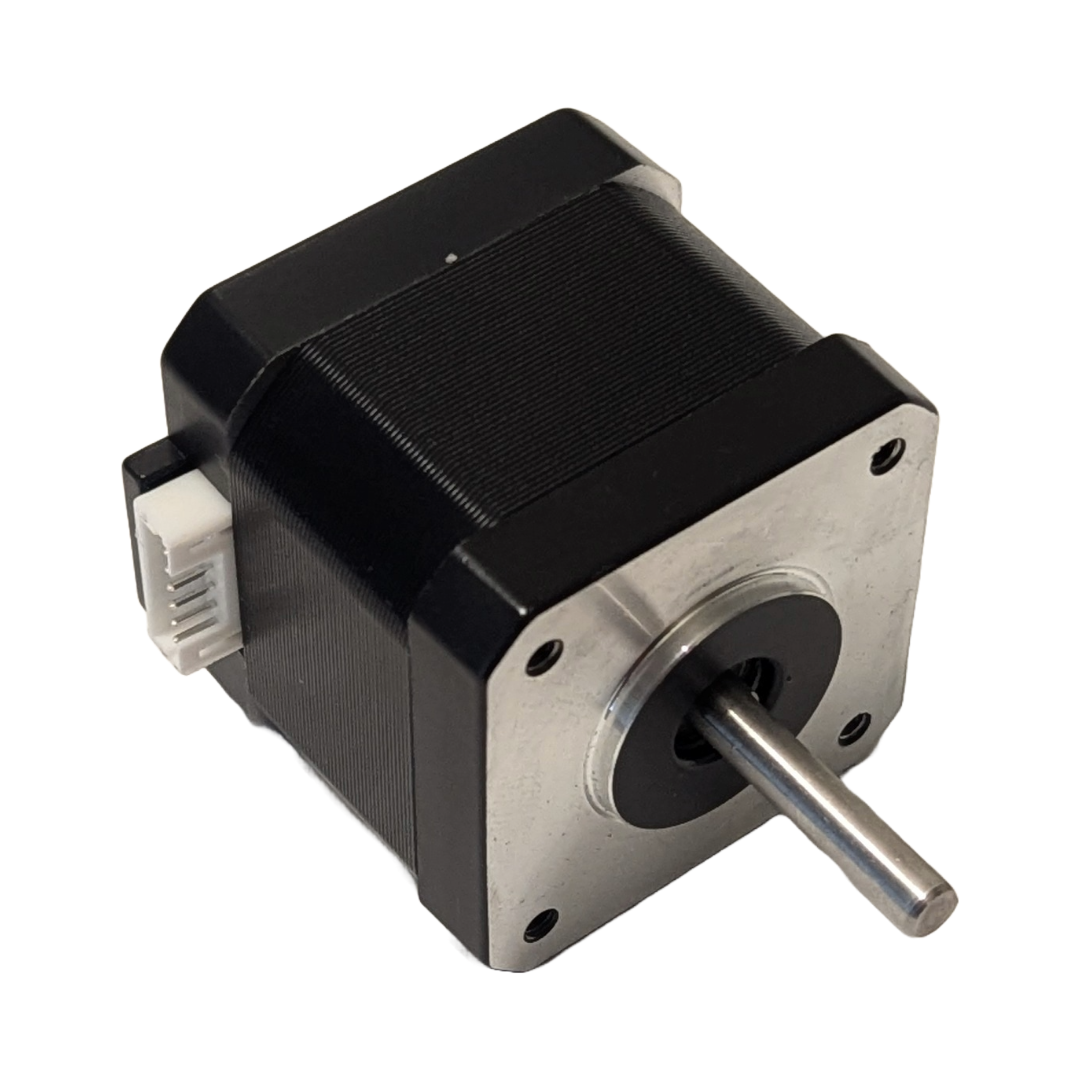

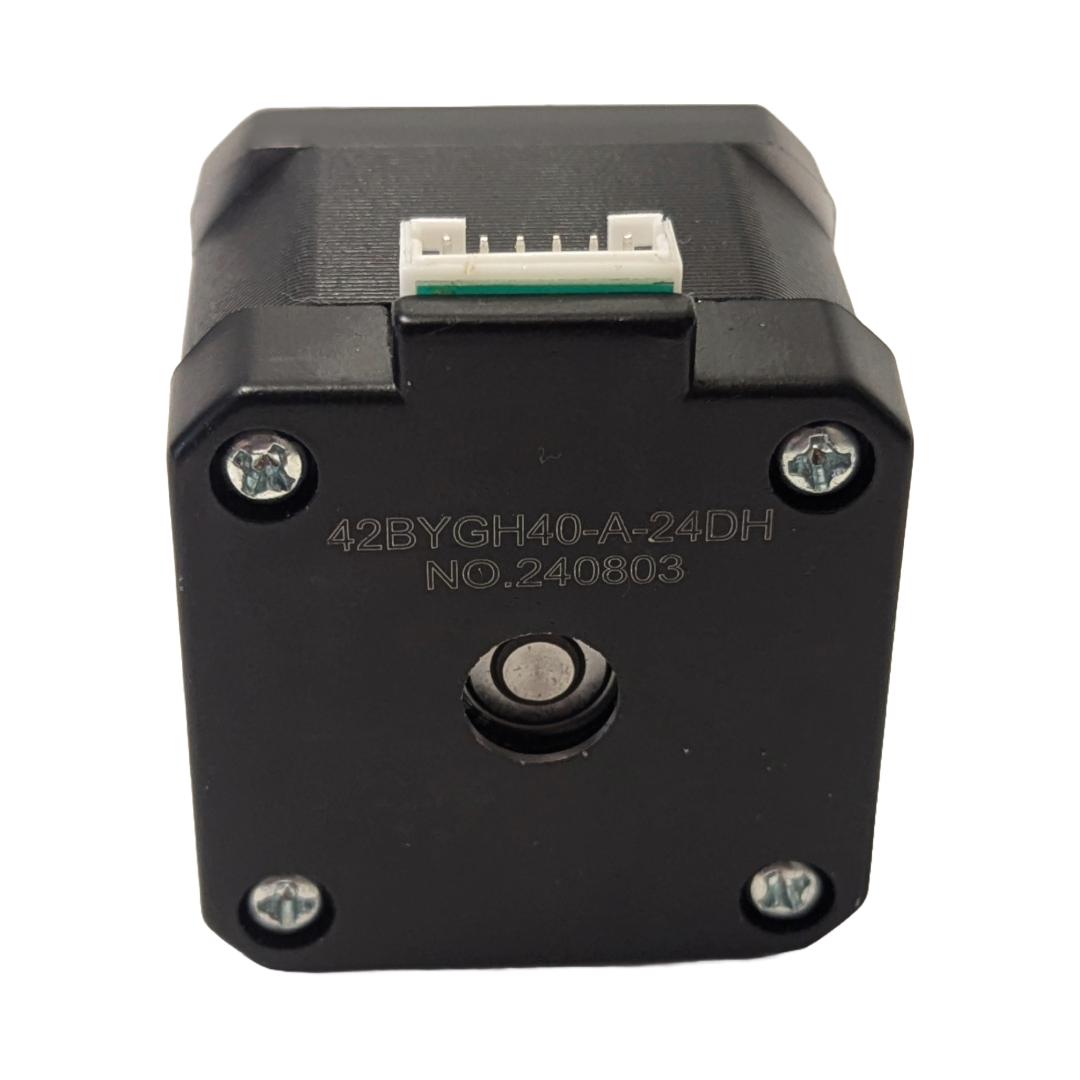

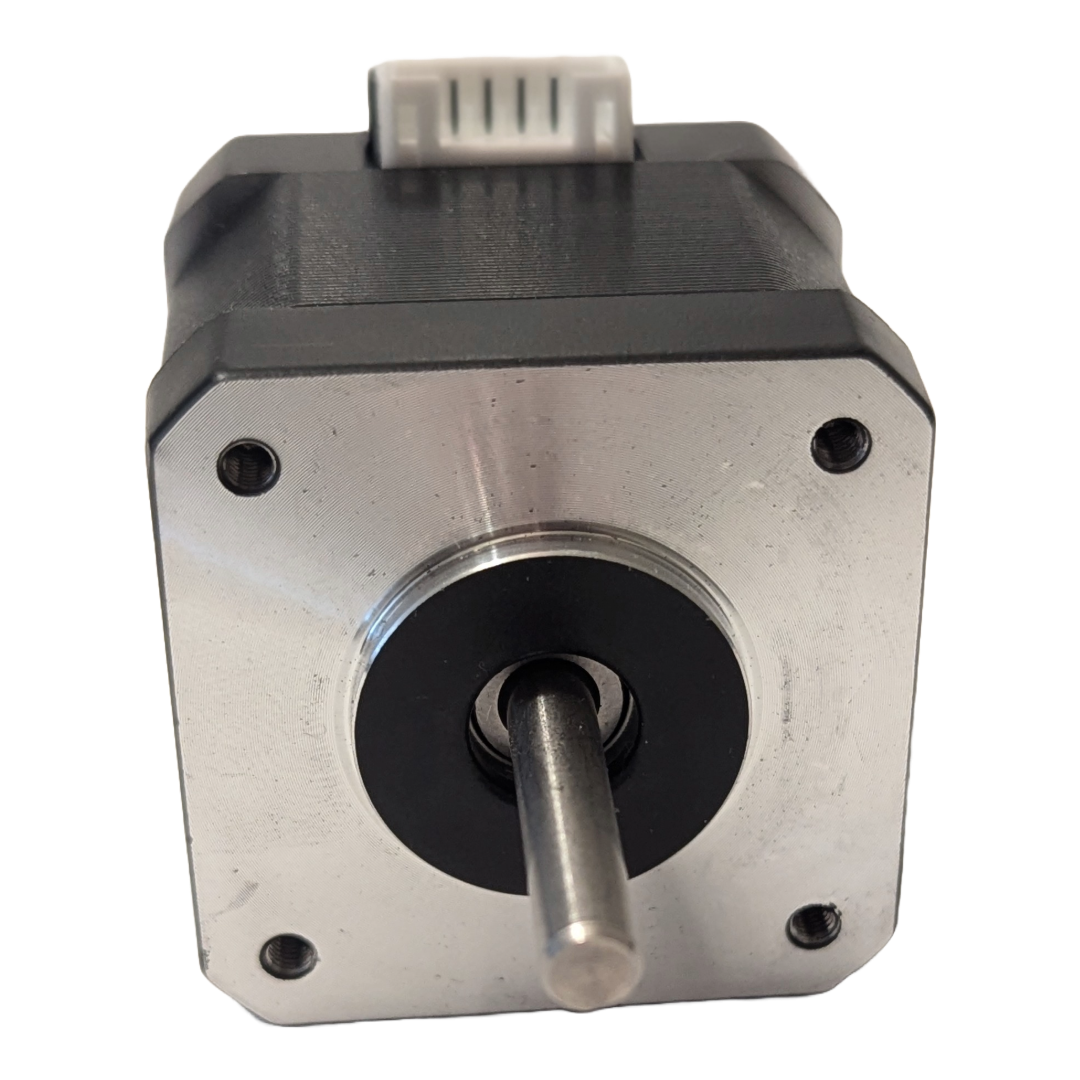

The 42BYGH stepper (NEMA17) motor is a compact and efficient solution for precise motion control applications. With a step angle of 1.8°, this motor provides accurate positioning and smooth operation. It's ideal for monitor equipment, medical devices, and industrial automation.
Technical Specifications:
Step Angle: 1.8°
Fuselage Length: 40mm
Phase Voltage: 3.4V
Phase Current: 1.7A
Phase Resistance: 2Ω
Phase Inductance: 3mH
Static Torque: 3400 g.cm
Moment of Inertia: 54 g.cm²
Weight: 240g
Ambient Temperature: -20°C to +55°C
Insulation Resistance: 100MΩ Min (500V DC)
Insulation Class: B
Applications:
Perfect for use in monitor equipment, medical devices, and industrial automation, the 42BYGH NEMA17 motor delivers reliable performance in demanding environments.
