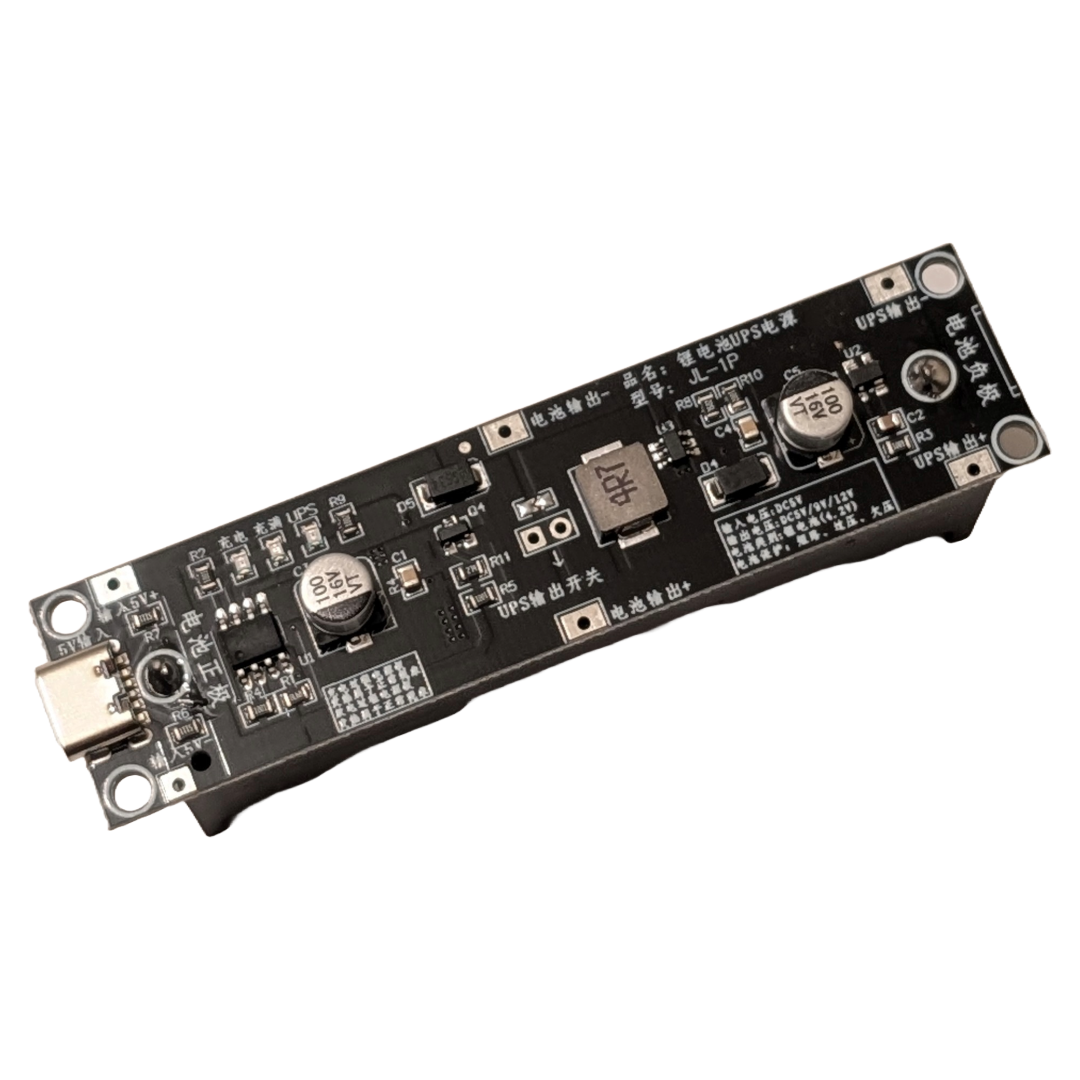

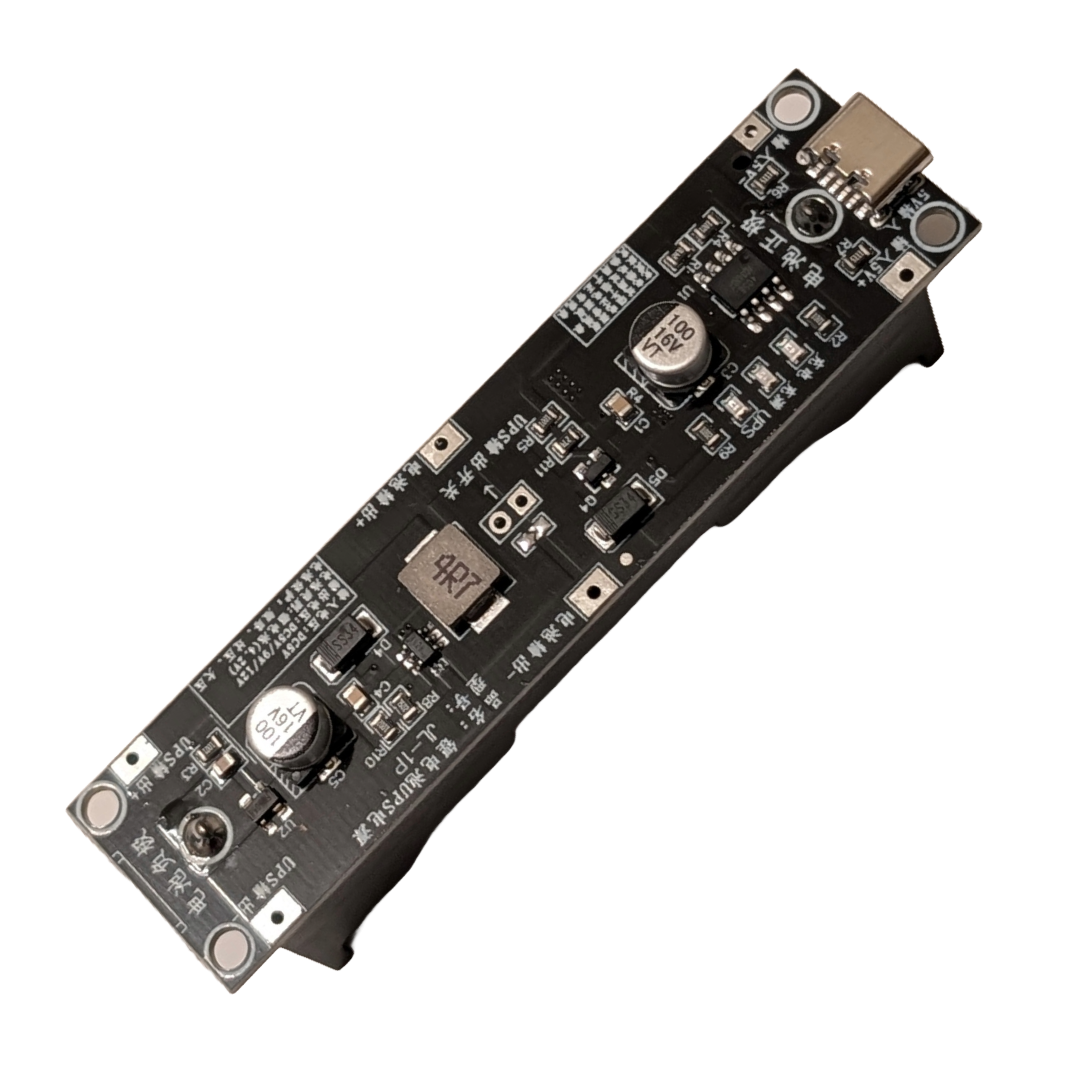

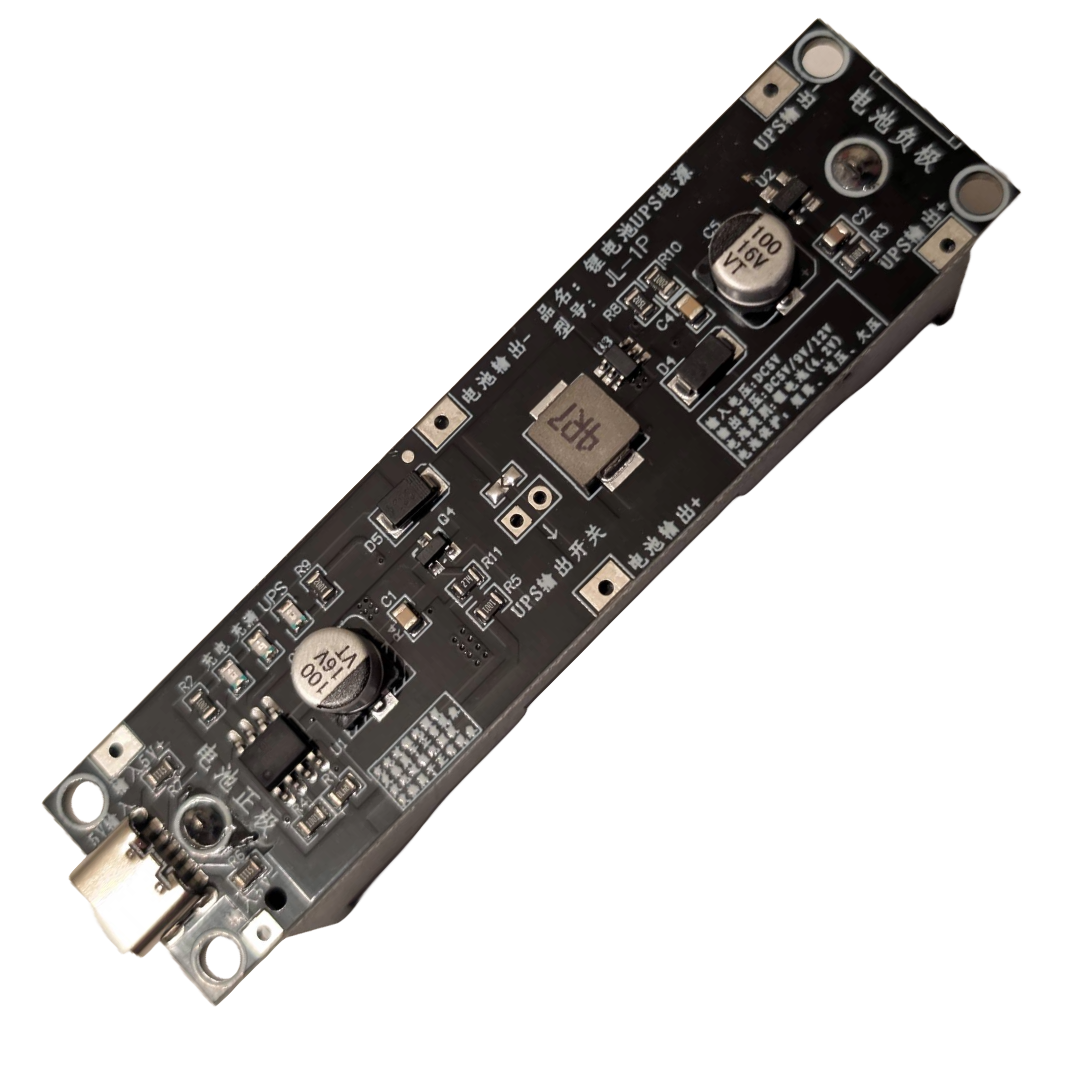

18650 Battery Charge Shield Expansion Board

18650 Battery Charge Shield Expansion Board

Regular price $8.95 USD
Regular price Sale price $8.95 USD
Sale Sold out

18650 Battery Charge Shield Expansion Board – Type-C Charging & 5V Boost Converter for DIY Electronics

The 18650 Battery Charge Shield Expansion Board is your go-to solution for powering microcontrollers, sensors, and other electronics using 18650 lithium-ion batteries. With an upgraded USB Type-C charging port, this board ensures faster and more convenient charging. Designed for seamless use with Arduino, ESP32, Raspberry Pi, and IoT projects, it features a TP4056 charging circuit and a boost converter to deliver a stable 5V output. Whether you're building robotics, wearables, or other battery-powered devices, this expansion board ensures long-lasting and reliable power.


Key Features:

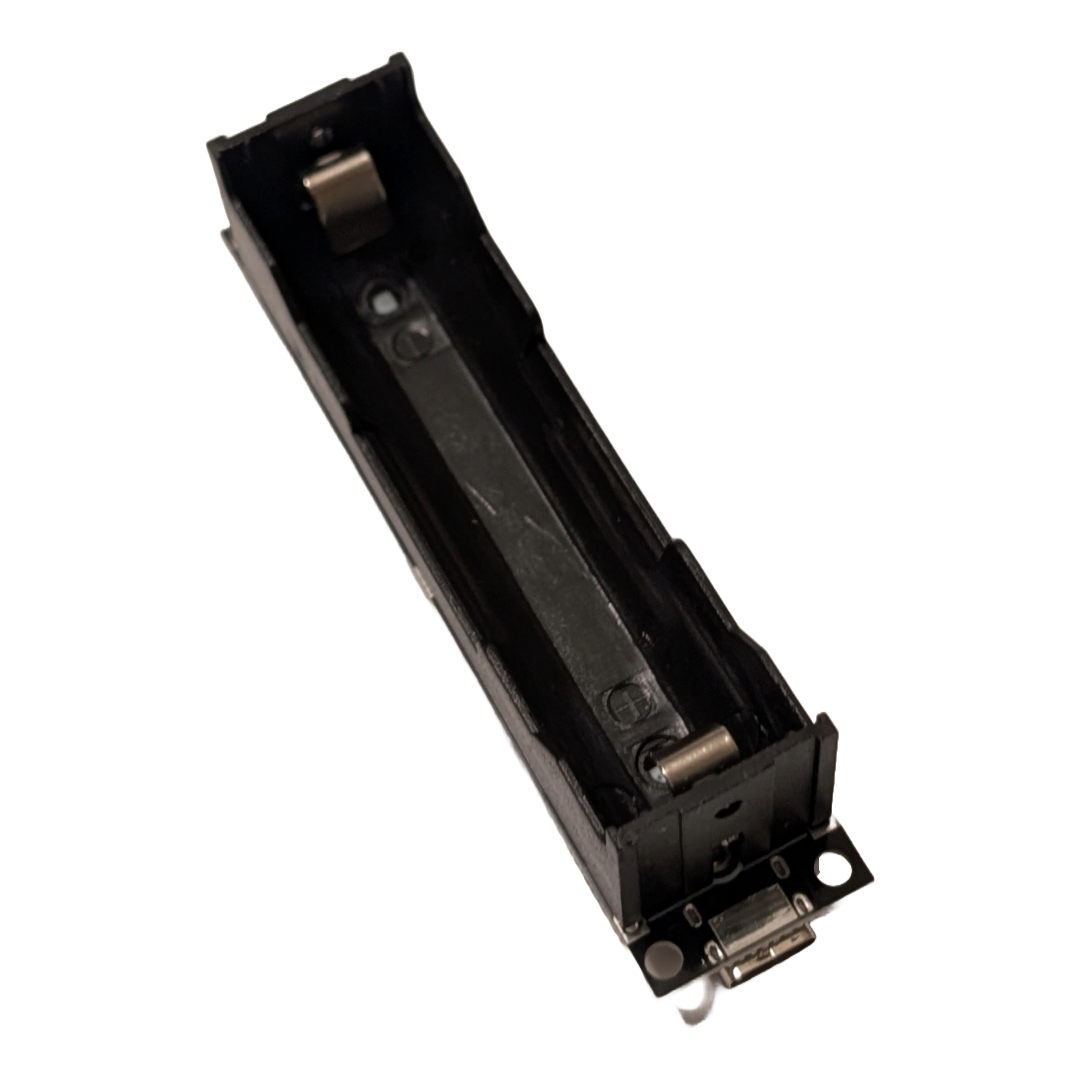

  • Supports 18650 Lithium-ion Batteries: Works with single 3.7V 18650 cells (battery not included).
  • USB Type-C Charging Port: Fast and easy charging with modern Type-C cables.
  • Integrated TP4056 Charging Circuit: Safe battery charging with overcharge, over-discharge, and short-circuit protection.
  • 5V Boost Converter: Steps up the 3.7V battery to a stable 5V output for powering electronics.
  • Battery Protection Features: Overcharge, over-discharge, and short-circuit safety mechanisms.
  • LED Indicators: Show charging and operational status at a glance.

Technical Specifications:

  • Input Voltage: 4.5V - 5.5V via USB Type-C port
  • Battery Support: 3.7V 18650 lithium-ion battery
  • Output Voltage: 5V DC (boosted from 3.7V)
  • Charge Current: 1A maximum
  • Overcharge Protection Threshold: 4.2V ± 1%
  • Over-discharge Protection Threshold: 2.5V ± 1%

Why Choose This 18650 Battery Charge Shield Expansion Board?

Enjoy the benefits of USB Type-C fast charging combined with efficient 5V power management. This expansion board is perfect for IoT devices, portable electronics, and robotics projects, allowing you to create reliable, battery-powered systems with minimal downtime. With built-in safety features and a consistent 5V output, you can confidently use it for everything from Arduino-based prototypes to sensor-driven devices.
